Black and red Solar Panel Extension Cable - 50 Feet 10AWG(6mm²) Solar Extension Cable
Larger Solar panels that are designed to be wired together in an array need a standardized termination that can handle higher power levels.

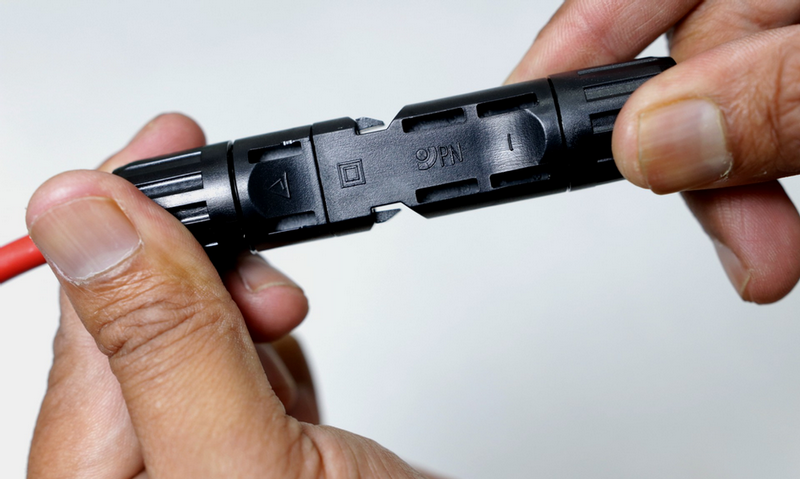

The MC4 connector fits the need perfectly.
Most larger solar panels with a rating of more than 50 Watts come with MC4 connectors already on them.
It provides an IP67 waterproof and dust-proof safe electrical connection.
| Specification | Condstruction (n * mm2) |
| 2.5mm2 | 4.0mm2 | 6.0mm2 | 10.0mm2 |
| Rating Voltage: | 1500V |
| Conductor | Conductor structure | Class 5 Tinned copper conductor |
| Material | Tinned copper wire(TXR) |
| Number of wires in conductor | 50/0.28 | 56/0.28 | 84/0.28 | 142/0.28 |
| Insulation | Material | Polyolefin copolymer electron-beam cross-linked |
| Insulation OD(mm) | 3.85 | 4 | 4.6 | 6.5 |
| Color | Black |
| Sheath | Material | Polyolefin copolymer electron-beam cross-linked |
| Sheath OD(mm) | 5.4 | 5.8 | 6.6 | 8 |
| Color | Black/Red |
| Max. Resistance AC20oC ohm/ km | 8.21 | 5.09 | 3.39 | 1.95 |
| 60oCA Ampacity (60oCA)(A) | 41 | 55 | 70 | 98 |
| Environmetal temperature | -40℃~90℃ |
| Application standards | EN H1Z2Z2-K |
| Length (Meter) | Optional 1 meters/3 meters/5 meters/10 meters |
Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers.
We can provide the cables as well as connectors linked with the cable.
We adpot select raw-materials, our products are in high quality, competitive prices, prompt delivery.
This solar extension cord has the powerful performance of effective protection, the waterproof rating is IP67, and the fire rating is IEC60332-1, which effectively guarantees its normal operation under severe conditions. The maximum service life can exceed 25 years (-40℃-+90℃), safe and reliable, giving you the greatest safety protection, trustworthy.
Assembly Instructions
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

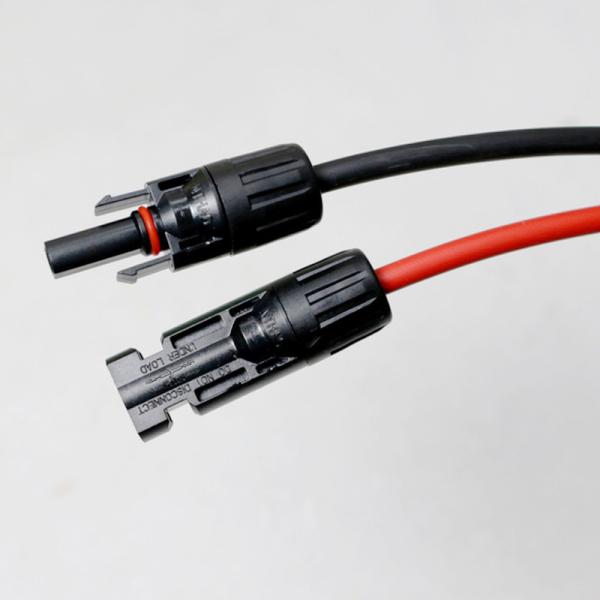

Picture of PV Solar Panel Extension Cable
